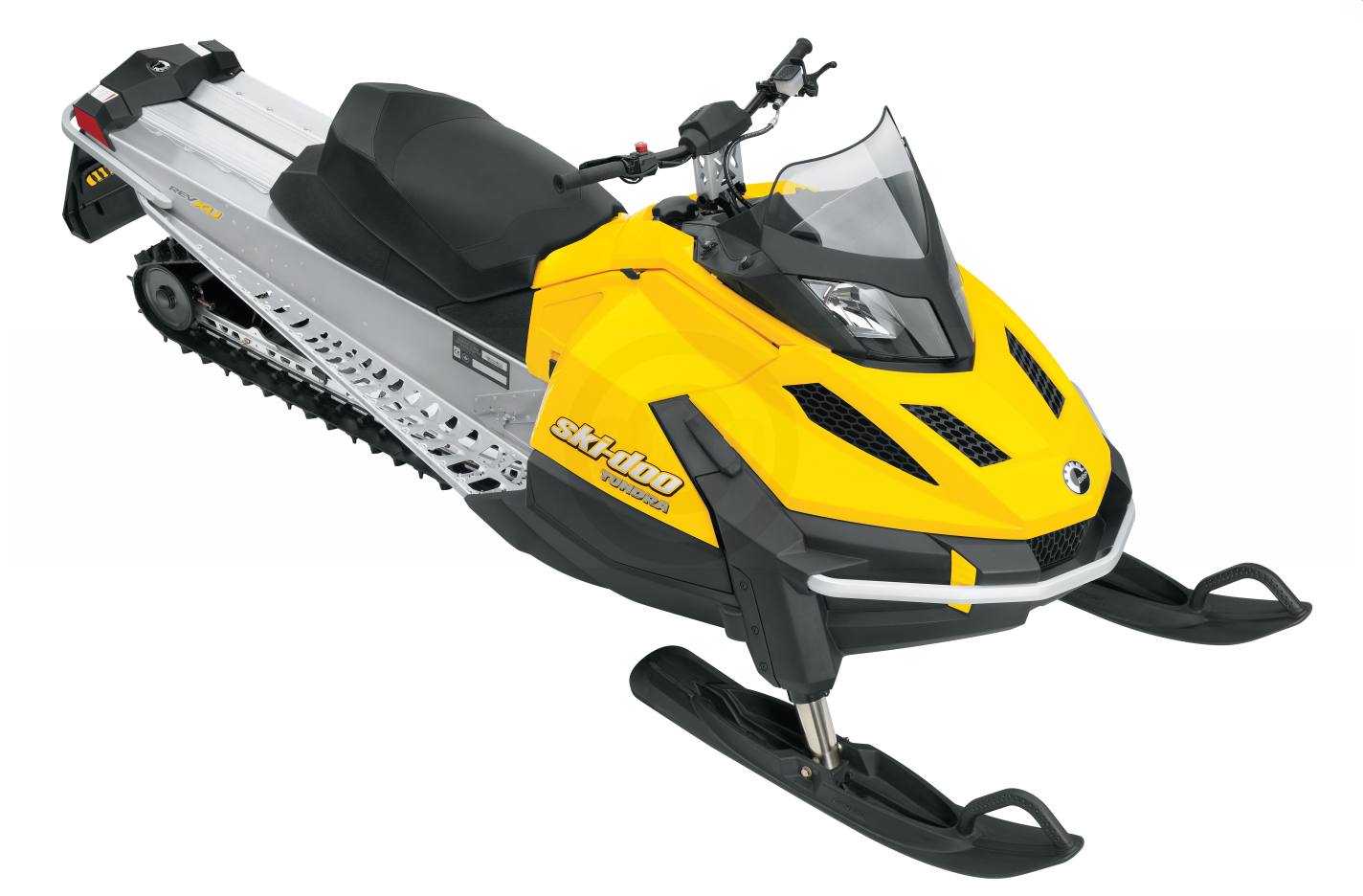

2010 Ski-Doo Tundra

Request a Quote

Financing Calculator

Financing Form

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

When Utility Sleds are More than Utility.

“Utility” is too narrow a description for the 2010 Ski-Doo Skandic and Tundra snowmobiles. While they’re tough and equipped with features for getting tasks done, they’re equally adept at exploring the deep snow of the backcountry and cruising trails. They’re also ideal for family riding.

Plus, it’s a big year for the completely reinvented Tundra model. The sport-utility sled known for its lightweight design and unmatched flotation is reborn with more of both for 2010. Thanks in large part to its rugged new REV-XU platform. A stronger, lighter chassis that’s equally suited to work or play. Along with completely redesigned Lynx® Telescopic Suspension (LTS) that allows for 65% more flotation surface than the previous RF Tundra. Meaning the dramatically improved Tundra doesn’t just excel in deep snow. It dominates in it.

Great flotation at a great value.

Frame: REV-XU
Skis: Wide blow molded
Seating: 1-up
Handlebar: Painted steel with riser block (115 mm / 4.5 in)
Electric start: Optional
Reverse: RER
Heated throttle lever: Standard
Heated grips: Standard
Speedometer: Standard
Tachometer: Standard
Fuel gauge: Standard
Mirrors: Optional
Windshield: 250 mm / 10 in
Carbide runner: Optional
Hitch: Optional

Package Highlights

NEW REV-XU™ platform
Large blow molded skis
Medium windshield
Lynx Telescopic front suspension
RER™ electronic reverse
Riser block 115 mm / 4.5 in
SC™-5M rear suspension

Engine

Engine: Rotax 550F
Engine details: Axial fan-cooled, cylinder reed porting
Cylinders: 2
Displacement: 553.4 cc / 33.8 in³
Bore: 76 mm / 3 in
Stroke: 61 mm / 2.4 in
Max. engine speed: 6900 RPM
Carburetion: 2X VM-30
Recommended fuel type: Regular unleaded
Min. octane: 87
Fuel tank: 40 liters / 10.6 gallons
Oil tank capacity: 3.7 liters / 3.9 quarts
Exhaust system: Single tuned-pipe, baffle muffler

Powertrain

Drive clutch type: TRA™ III
Driven clutch type: LPV VSA
Engagement: 2500 RPM
Small sprocket number of teeth: 17
Large sprocket number of teeth: 45
Drive sprocket number of teeth: 8
Drive sprocket diameter: 183 mm / 7.2 in
Brake system: Hydraulic

Suspension

Front suspension: LTS
Front shock: Motion Control
Front suspension max. travel: 150 mm / 6 in
Rear suspension: SC-5M
Center shock: Motion Control
Rear shock: HPG
Rear suspension max. travel: 381 mm / 15 in

Dimensions

Vehicle overall length: 3069 mm / 120.8 in
Vehicle overall width: 1002 mm / 39.4 in
Vehicle overall height: 1110 mm / 43.7 in
Official dry weight: 202 kg / 445 lb
Ski stance: 813 mm / 32 in
Ski overall length: 1033 mm / 40.7 in
Ski width: 172 mm / 6.7 in
Track nominal width: 381 mm / 15 in
Track nominal length: 3486 mm / 137 in
Track profile height: 31.8 mm / 1.25 in

Color

Yellow/Black

Specifications

Engine
Engine Type	Rotax 550F
Displacement	553.4 cc (33.8 cu. in.)
Bore x Stroke	Bore: 76 mm (3 in.); Stroke: 61 mm (2.4 in.)
Cylinders	2
Engine Cooling	Axial fan-cooled
Carburetion	2X VM-30
Exhaust	Single tuned-pipe, baffle muffler
Drivetrain
Brake Type	Hydraulic
Drive Clutch	TRA™ III
Driven Clutch	LPV VSA
Suspension
Front Suspension	LTS
Front Travel	150 mm (6 in.)
Rear Suspension	SC-5M
Rear Travel	381 mm (15 in.)
Ski Type	Blow molded
Ski Stance	813 mm / 32 in
Track Dimensions	Track nominal width: 381 mm (15 in.); Track nominal length: 3486 mm (137 in.); Track profile height: 31.8 mm (1.25 in.)
General
Speedometer	Standard
Tachometer	Standard
Fuel Capacity	40 l (10.6 gal)
Dry Weight	202 kg (445 lbs.)
Windshield	250 mm (10 in.)
Color	Yellow/Black
Options
Electric Start	Optional
Hand & Thumb Warmers	Standard
Reverse	RER
Mirrors	Optional

Compare Models

Drivetrain

Year	2010
Manufacturer	Ski-Doo
Model	Tundra
Style	Utility
MSRP*	$6,999.00
Brake Type	Hydraulic
Drive Clutch	TRA™ III
Driven Clutch	LPV VSA
Engine
Engine Type	Rotax 550F
Displacement	553.4 cc (33.8 cu. in.)
Bore x Stroke	Bore: 76 mm (3 in.); Stroke: 61 mm (2.4 in.)
Cylinders	2
Engine Cooling	Axial fan-cooled
Carburetion	2X VM-30
Ignition
Exhaust	Single tuned-pipe, baffle muffler
Alternator
General
Speedometer	Standard
Tachometer	Standard
Odometer
Headlight
Fuel Capacity	40 l (10.6 gal)
Dry Weight	202 kg (445 lbs.)
Windshield	250 mm (10 in.)
Color	Yellow/Black
Warranty
Options
Electric Start	Optional
Hand & Thumb Warmers	Standard
Reverse	RER
Mirrors	Optional
Suspension
Front Suspension	LTS
Front Travel	150 mm (6 in.)
Rear Suspension	SC-5M
Rear Travel	381 mm (15 in.)
Ski Type	Blow molded
Ski Stance	813 mm / 32 in
Track Type
Track Dimensions	Track nominal width: 381 mm (15 in.); Track nominal length: 3486 mm (137 in.); Track profile height: 31.8 mm (1.25 in.)
