Virtual Showroom » Ski-Doo » MX Z TNT Rotax 550F
Model Quick Search

$8,499.00

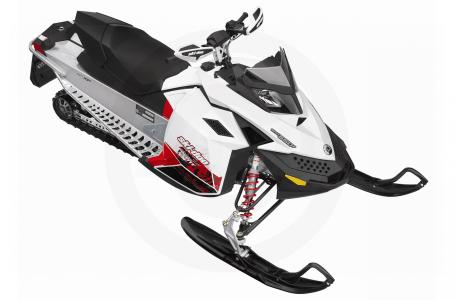

2010 Ski-Doo MX Z TNT Rotax 550F
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

It’s more than a performance sled. It’s the performance standard.


Our engineers and designers didn’t hold back with this one. The 2010 MX Z. Intense maneuverability. Breathtaking acceleration. And plenty of other reasons to call it the performance standard. Built on the incredibly light REV-X platform, it had to have both a 2-stroke and 4-stroke engine option. It was only fair. Every rider deserves a little trail time with the best cross-country sled on the planet.


Light and nimble for razor-sharp cornering.

  • Frame: REV-XP
  • Skis: Pilot 5.7
  • Seating: REV-XP
  • Handlebar: Painted steel / Riser block (4.5 in.(115 mm))
  • Electric start: Optional
  • Reverse: RER
  • Heated throttle lever: Standard
  • Heated grips: Standard
  • Speedometer: Standard
  • Tachometer: Standard
  • Fuel gauge: Standard
  • Mirrors: Optional
  • Windshield: 5.5 in. (140 mm)
  • Carbide runner: Standard
  • Hitch: Optional
Package Highlights
  • Brembo hydraulic brake
  • Pilot™ 5.7 skis
  • NEW HPG™ Plus aluminum rebuildable shocks
  • SC™-5 rear suspension
  • Lightweight 1.25-inch lug RipSaw track
  • Riser block / handlebar wind deflectors / low windshield
  • Analog gauge with display
  • Electric fuel gauge
Engine
  • Engine: Rotax 550F
  • Engine details: Axial fan-cooled, cylinder reed porting
  • Cylinders: 2
  • Displacement: 33.8 in.³ (553.4 cc)
  • Bore: 3 in. (76 mm)
  • Stroke: 2.4 in. (61 mm)
  • Max. engine speed: 6900 RPM
  • Carburetion: 2X VM-30
  • Fuel type: Regular unleaded
  • Min. octane: 87
  • Fuel tank: 10.6 gal. (40 l)
  • Oil tank capacity: 3.9 qts. (3.7 l)
  • Exhaust system: Single tuned-pipe, baffle muffler
Powertrain
  • Drive clutch type: TRA™ III
  • Driven clutch type: LPV VSA
  • Engagement: 3800 RPM
  • Small sprocket number of teeth: 21
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 7.2 in. (183 mm)
  • Brake system: Brembo hydraulic brake
Suspension
  • Front suspension: Dual A-arm
  • Front shock: HPG Plus
  • Front suspension max. travel: 9 in. (229 mm)
  • Rear suspension: SC-5
  • Center shock: HPG Plus
  • Rear shock: HPG Plus
  • Rear suspension max. travel: 15 in. (381 mm)
Dimensions
  • Vehicle overall length: 113.8 in. (2890 mm)
  • Vehicle overall width: 47.9 in. (1217 mm)
  • Vehicle overall height: 39.4 in. (1000 mm)
  • Official dry weight: 411 lbs. (187 kg)
  • Ski stance: 42.4 in. (1077 mm)
  • Ski overall length: 42 in. (1066 mm)
  • Ski width: 5.7 in. (145 mm)
  • Track nominal width: 15 in. (381 mm)
  • Track nominal length: 120 in. (3051 mm)
  • Track profile height: 1.25 in. (31.8 mm)
Color
  • Color: White / White

Specifications

Engine
Engine Type Rotax 550F
Displacement 33.8 in.³ (553.4 cc)
Cylinders 2
Bore x Stroke Bore: 3 in. (76 mm); Stroke: 2.4 in. (61 mm)
Engine Cooling Axial fan-cooled
Carburetion 2X VM-30
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo hydraulic brake
Drive Clutch TRA™ III
Driven Clutch LPV VSA
Suspension
Front Suspension Front suspension: Dual A-arm; Front shock: HPG Plus
Front Travel 9 in. (229 mm)
Rear Suspension Rear suspension: SC-5; Rear shock: HPG Plus
Rear Travel 15 in. (381 mm)
Ski Type Pilot 5.7
Ski Stance 42.4 in. (1077 mm)
Track Dimensions Nominal width: 15 in. (381 mm); Nominal length: 120 in. (3051 mm); Profile height: 1.25 in. (31.8 mm)
General
Speedometer Standard
Tachometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 411 lbs. (187 kg)
Windshield 5.5 in. (140 mm)
Color White / White
Options
Electric Start Optional
Hand & Thumb Warmers Heated throttle lever: Standard; Heated grips: Standard
Reverse RER
Mirrors Optional

Compare Models

 Print








Year 2010
Manufacturer Ski-Doo
Model MX Z TNT Rotax 550F
Style Performance
MSRP* $8,499.00
Drivetrain
Brake Type Brembo hydraulic brake
Drive Clutch TRA™ III
Driven Clutch LPV VSA
Engine
Engine Type Rotax 550F
Displacement 33.8 in.³ (553.4 cc)
Bore x Stroke Bore: 3 in. (76 mm); Stroke: 2.4 in. (61 mm)
Cylinders 2
Engine Cooling Axial fan-cooled
Carburetion 2X VM-30
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer
Headlight
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 411 lbs. (187 kg)
Windshield 5.5 in. (140 mm)
Color White / White
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers Heated throttle lever: Standard; Heated grips: Standard
Reverse RER
Mirrors Optional
Suspension
Front Suspension Front suspension: Dual A-arm; Front shock: HPG Plus
Front Travel 9 in. (229 mm)
Rear Suspension Rear suspension: SC-5; Rear shock: HPG Plus
Rear Travel 15 in. (381 mm)
Ski Type Pilot 5.7
Ski Stance 42.4 in. (1077 mm)
Track Type
Track Dimensions Nominal width: 15 in. (381 mm); Nominal length: 120 in. (3051 mm); Profile height: 1.25 in. (31.8 mm)
